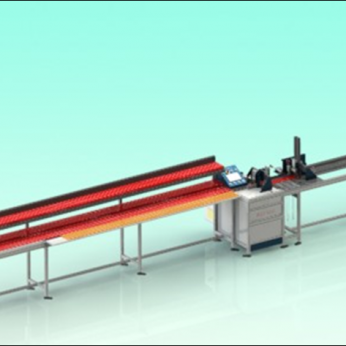

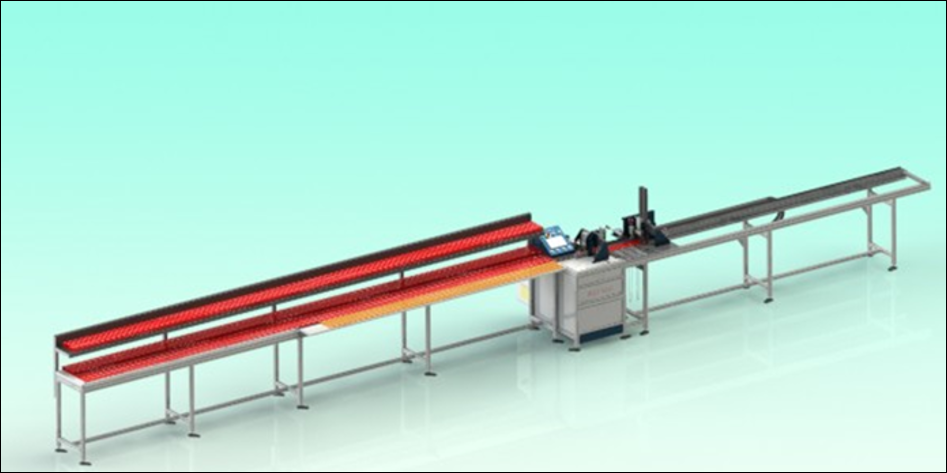

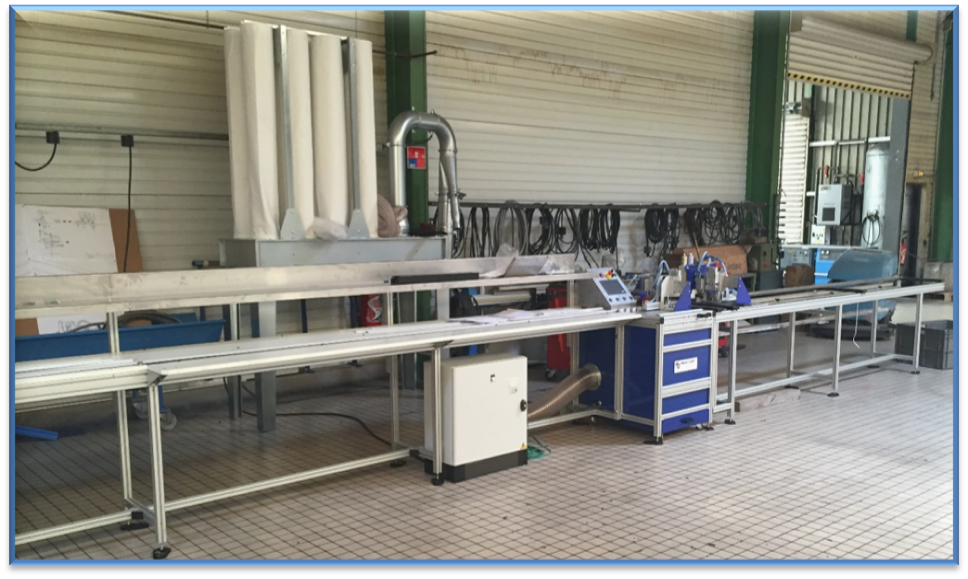

RKS 3 : Panels assembly machine with fitting of end caps

Machine that cuts to length and threads theslats, then inserts the end caps and crimps them. The evacuation of the scrap is manual. The panels come out flat on a control table (or in a reel, on option).

The machine can work different slats, just change the templates.

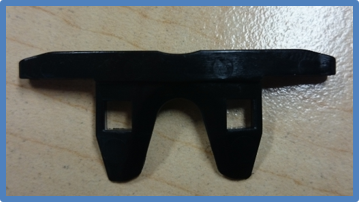

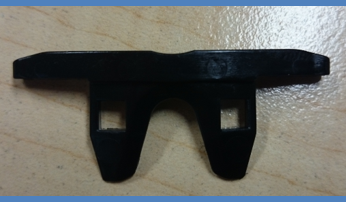

The RKS 3 works with most end-caps, with double perforation.

Caractéristiques techniques
Width of slats

from  37 to  67 mm

Width of panels

from 500 to 3500 mm

Locking system

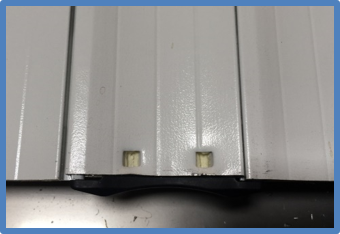

Plastic end-caps crimping

Can deal up to 5 different slats
Time to change from one type of slat to another :

10 minutes

Day production

60 panels /day

Excellent fixing of caps
Easy change of gigs
High capacity of caps-magasine
